ERP Settings

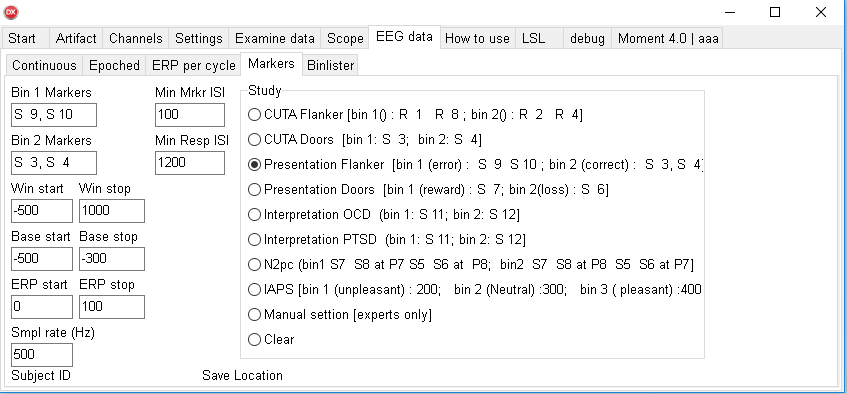

This is an example of what the markers tab looks like. You need to pick the option that matches the task you are running or streaming data from.

ERP Settings information:

• Win start to Win stop – This is the entire window (epoch) of your ERP
  • Win start – How many ms before the marker should data collection start
  • Win stop - How many ms after the marker should data collection end
• Base start to base stop – This is your baseline window. Meant to remove noise by collecting a baseline signal
  • Base start - The start of your baseline window, how many ms before the marker it should start; usually the same as Win start.
  • Base stop - The end of your baseline window.
• ERP start to ERP stop - The window of values that will be averaged to find your erp value.
  • ERP start - The start of your ERP window, how many ms after the marker it should start (0 would be at the same time as the marker).
  • ERP stop - The end of your ERP window.
• Smpl rate (Hz) - the sampling rate your data is collected in, measured in hertz
• Bin 1 Markers and Bin 2 markers - how your data will be "binned". Make sure it matches those sent by your task.
• Min Mrkr ISI - minimum inter stimulus interval allowed for the marker
• Min Resp ISI - minimum inter stimulus interval allowed for the response
• Study - Pick the task you are running the participant in or the task you are streaming offline data from

After checking settings, return to your tutorial: streaming data tutorial
